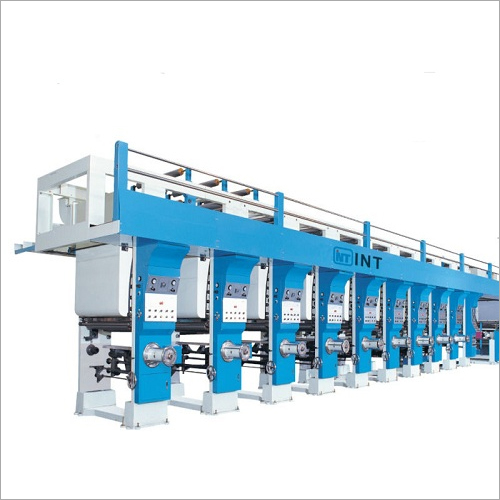

Rotogravure Printing Machine

Rotogravure Printing Machine

Product Details:

  • Supply Ability : 25-45 Piece Per Day
100000.00 INR/Piece
X

Price And Quantity

  • 100000.00 INR/Piece
  • 1 Piece

Trade Information

  • 25-45 Piece Per Day
  • 25-45 Days

Product Description

Specifications:
  • Printing material:- Film, paper, aluminum foil, pet, BOPP, PVC film polyester, polyester, poly and metalized film
  • Number of colors:- 1–8 colors
  • Web width:- 20” to 80”
  • Web roller:- Aluminum rollers or steel rollers
  • Machine speed:- Up to 250 m/min
  • Unwind type:- Single fixed shaft type or 2 shaft turret type unwinder
  • Reel diameter:- 1000 mm(approx)
  • Unwind shaft:- Air shaft, tapper cone with solid shaft
  • Tension controller:- Manually auto registration control system (A.C. motor)
In feed Unit:

Synchronized control (A.C. motor)

Printing Unit:
  • Frame:- Cast iron
  • Cylinder:- Diameter – 100 mm to 300 mm
  • Chucking:- Shaft with taper cone
  • Drying system:- Single chamber impingement slot dryer (electric, thermal oil, hot air generator, etc.)’
  • Doctor Blade:- Manual numeric doctor blades
  • Ink system:- S. S. ink tray
  • Registration system:- Manually auto registration control system
  • Out feed unit:- Synchronized control (A.C. motor)
Rewinder:
  • Reel diameter:- 1000 mm(approx)
  • Rewind shaft:- Air shaft, taper cone with solid shaft or softness
  • Tension controller:- Manual fully automatic control system (A.C. motor)
